1, High-definition display: high density products, high resolution high-definition display, no flicker, no particle;
2, High refresh:high refresh rate of 1920Hz, gray 14 ~ 16 Bit adjustable display high-definition playback smoothly brightly, truely;
3, Large angle of view: the use of high quality table lamp, the visual angle up to 140 degrees and above, multi-direction viewing display effect is consistent;
4, Good flatness, good consistency: 250*250mm large size design, reduce the splicing gap of the screen body, the bottom shell structure design of multi rib strengthened, to ensure the product is not easy to tensile deformation, guarantee of the whole flat screen body and unity;

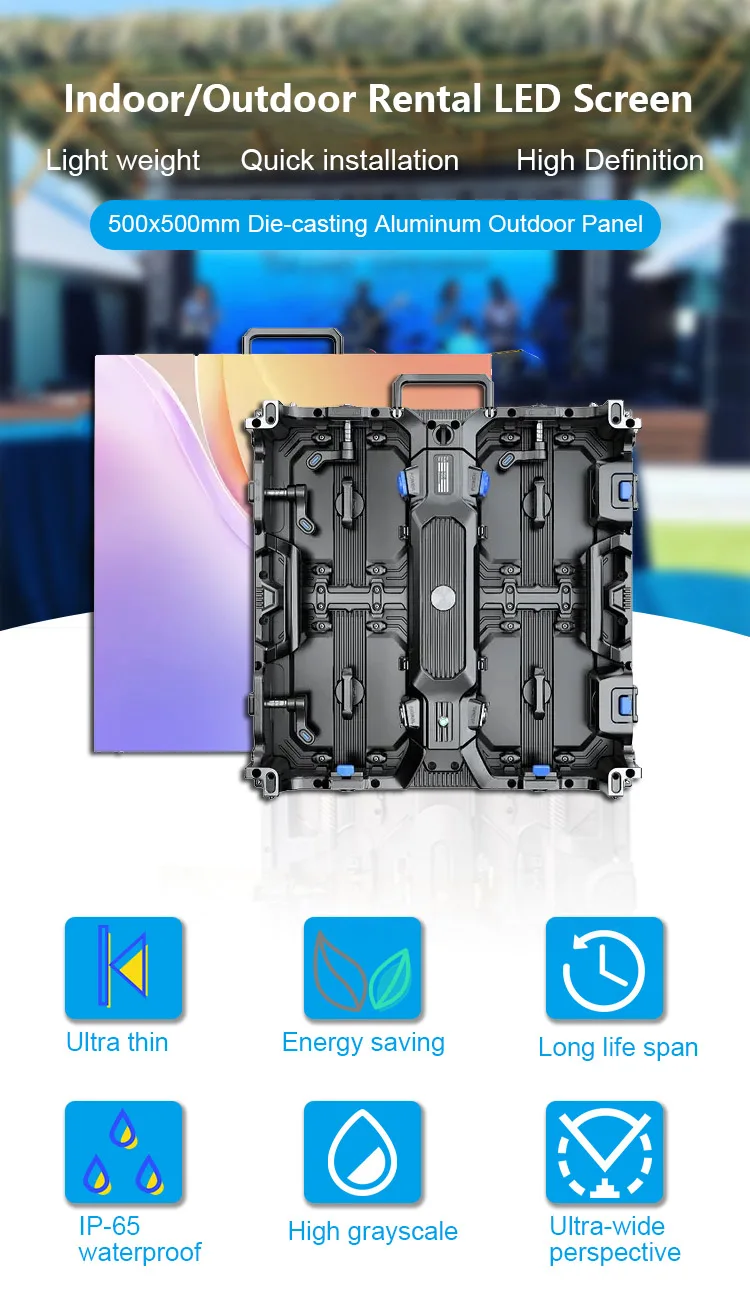

5, Standard size, convenient installation: 250*250mm standard size design, the assembly efficiency of the whole screen, can be used with the 500*500mm die casting aluminum box frame, the product is light, convenient installation.
6. Support All Media Format and Display Mode:
DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program,VCD/DVD and live show.
7.Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet.

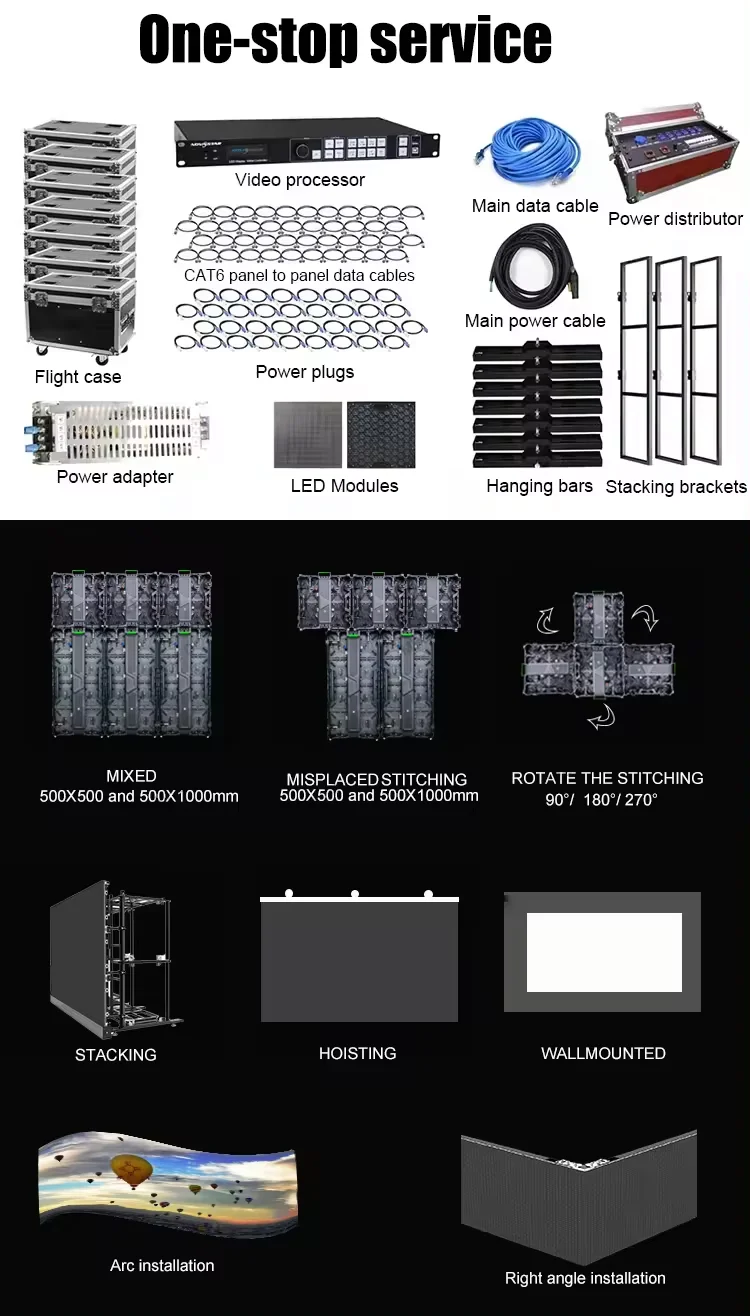

2 sizes of cabinet options
500×500mm and 500×1000mm both size
Two types of cabinet can be freely mixed and matched

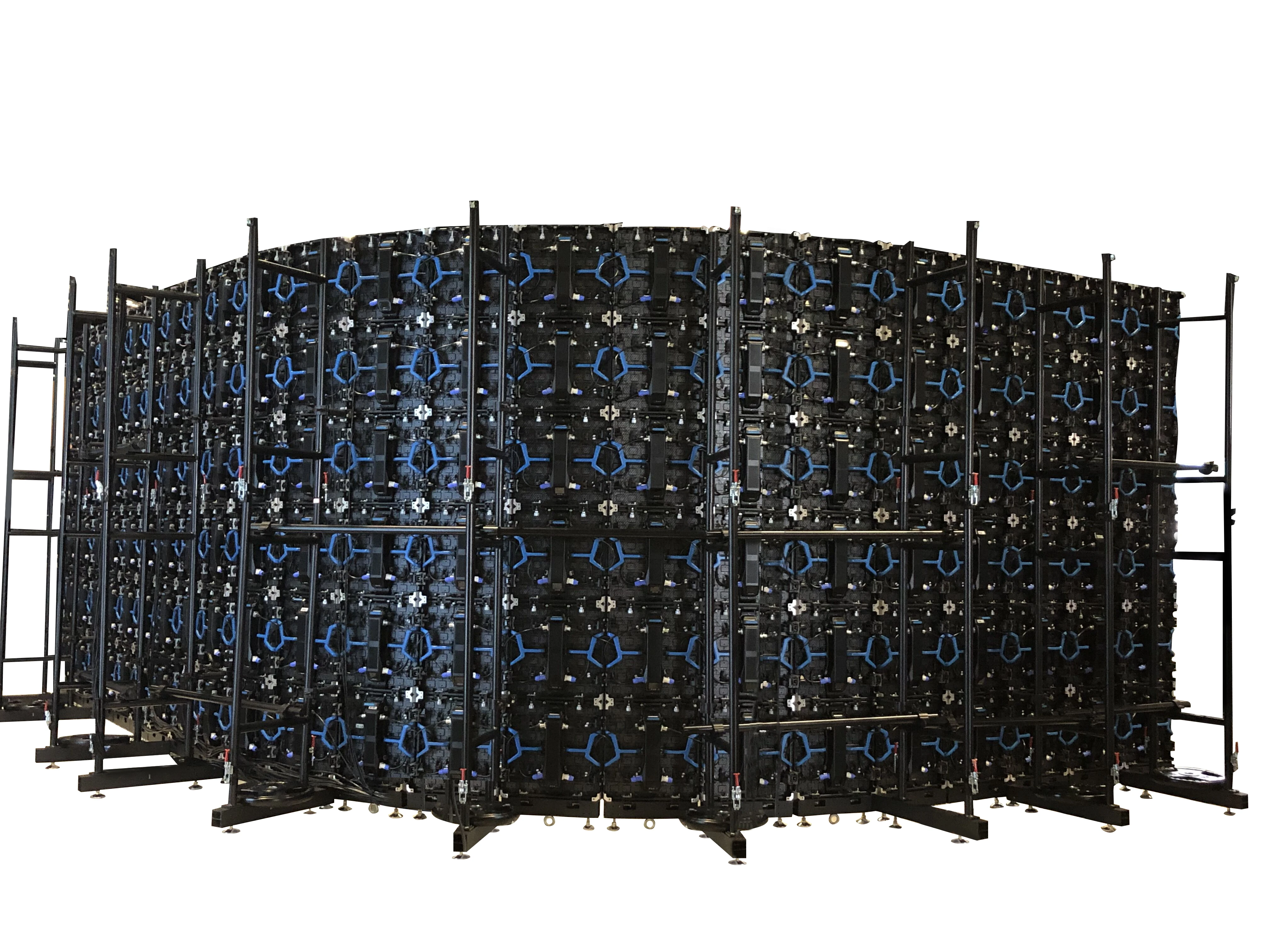

Jointable inner and outer arcs
±6° Concave and Convex curve shape
Straight and curved locks are optional
Precise positioning, convenient maintenance
100% full front service maintenance The cabinet is equipped with positioning pins and positioning steel ball design
for quick positioning and installation
Product specification
| Name | | |
| Product | P2.9 | P3.91 | P2.9 | P3.91 |
| Pixel Pitch (mm) | 2.976 | 3.91 | 2.976 | 3.91 |
| Module resolution | 84*84 | 64*64 | 84*84 | 64*64 |
| Module size (mm) | 250*250 | | | |
| Scan method | 1/28s | 1/16s | 1/21s | 1/16s |
| Cabinet resolution | 168*168 | 128*128 | 168*168 | 128*128 |
| Cabinet size | |
| Cabinet material | |
| Cabinet weight | |
| Density (pixels/㎡) | 112896 | 65536 | 112896 | 65536 |
| Protection level | |
| Brightness (nits) | 1000nits | 1200nits | 5000nits | 6000nits |
| Max power consumption/㎡ | 520W | 480W | 680W | 620W |
| Average power consumption/㎡ | 170W | 160W | 220W | 220W |
| Cabinet maintenance | |
| Input voltage | |
| Refresh rate | |
Precise positioning, convenient maintenance
100% full front service maintenance
The cabinet is equipped with positioning pins and positioning steel ball design for quick positioning and
installation.
Location: 2023 LDI Exhibition
Screen Size: W10.5m×H3m
